Week 15 — LMCache

Learning Objectives

Key Concepts

Setup & Configuration

# Verify 1× H100 GPU
nvidia-smi --query-gpu=index,name,memory.total --format=csv,noheader

# Check available disk space for LMCache store
df -h /tmp

# Install LMCache (run inside a compute node salloc session, not login node)
pip install lmcache

# Verify installations
python -c "import lmcache; print('LMCache:', lmcache.__version__)"
python -c "import vllm; print('vLLM:', vllm.__version__)"

# Download model weights if not cached
python -c "from huggingface_hub import snapshot_download; snapshot_download('meta-llama/Llama-3.1-8B-Instruct')"

# Create LMCache config file
cat > lmcache_config.yaml << 'EOF'
chunk_size: 256
local_device: "cpu"
local_disk_path: "/tmp/lmcache_store"
max_local_cpu_size: 20    # GB
max_local_disk_size: 40   # GB
EOF
mkdir -p /tmp/lmcache_store

Experiments

# Start vLLM without prefix caching (clean baseline)
vllm serve meta-llama/Llama-3.1-8B-Instruct \
  --port 8000 \
  --no-enable-prefix-caching \
  --disable-log-requests &
sleep 30

# Send 50 sequential requests with same 500-word system prompt
python - <<'PYEOF'
import time, requests

SYSTEM = "You are a helpful assistant. " * 250  # ~500 words / ~660 tokens
USER = "Summarize the key points of machine learning in one sentence."
ttfts = []

for i in range(50):
    start = time.perf_counter()
    requests.post("http://localhost:8000/v1/chat/completions", json={
        "model": "meta-llama/Llama-3.1-8B-Instruct",
        "messages": [{"role": "system", "content": SYSTEM},
                     {"role": "user",   "content": USER}],
        "max_tokens": 50}, timeout=120)
    ttfts.append((time.perf_counter() - start) * 1000)

s = sorted(ttfts)
print(f"[Baseline] mean={sum(ttfts)/len(ttfts):.1f} ms  "
      f"p50={s[24]:.1f} ms  p99={s[-1]:.1f} ms")
PYEOF

kill %1; sleep 5

# Start vLLM WITH APC enabled
vllm serve meta-llama/Llama-3.1-8B-Instruct \
  --port 8000 \
  --enable-prefix-caching \
  --disable-log-requests &
sleep 30

python - <<'PYEOF'
import time, requests

SYSTEM = "You are a helpful assistant. " * 250
USER   = "Summarize the key points of machine learning in one sentence."
URL    = "http://localhost:8000/v1/chat/completions"
PAYLOAD = {"model": "meta-llama/Llama-3.1-8B-Instruct",
           "messages": [{"role": "system", "content": SYSTEM},
                        {"role": "user",   "content": USER}],
           "max_tokens": 50}

# Cold: first request — full prefix prefill, no cache hit
t0 = time.perf_counter()
requests.post(URL, json=PAYLOAD, timeout=180)
cold = (time.perf_counter() - t0) * 1000
print(f"[APC] cold TTFT : {cold:.1f} ms  (cache miss — expected)")

# Warm: subsequent requests — prefix blocks already cached
warm = []
for _ in range(20):
    t0 = time.perf_counter()
    requests.post(URL, json=PAYLOAD, timeout=180)
    warm.append((time.perf_counter() - t0) * 1000)

print(f"[APC] warm TTFT : mean={sum(warm)/len(warm):.1f} ms  "
      f"speedup={cold/min(warm):.2f}x vs cold")
PYEOF

kill %1; sleep 5

# Step 1: Start vLLM + LMCache integration
LMCACHE_CONFIG_FILE=lmcache_config.yaml \
vllm serve meta-llama/Llama-3.1-8B-Instruct \
  --port 8000 \
  --enable-prefix-caching \
  --kv-transfer-config '{"kv_connector":"LMCacheConnector","kv_role":"kv_both"}' \
  --disable-log-requests &
sleep 30

# Step 2: Populate LMCache — sends prefix KVs to NVMe store
python - <<'PYEOF'
import time, requests
SYSTEM = "You are a helpful assistant. " * 250
USER   = "What is the capital of France?"
t0 = time.perf_counter()
requests.post("http://localhost:8000/v1/chat/completions", json={
    "model": "meta-llama/Llama-3.1-8B-Instruct",
    "messages": [{"role": "system", "content": SYSTEM},
                 {"role": "user",   "content": USER}],
    "max_tokens": 20}, timeout=180)
print(f"[LMCache] populate: {(time.perf_counter()-t0)*1000:.1f} ms (cold — expected)")
PYEOF

# Step 3: Graceful shutdown (SIGINT, never kill -9)
kill -2 %1; sleep 20
echo "vLLM stopped. LMCache NVMe store preserved:"
ls -lh /tmp/lmcache_store/

# Step 4: Restart vLLM with identical LMCache config
LMCACHE_CONFIG_FILE=lmcache_config.yaml \
vllm serve meta-llama/Llama-3.1-8B-Instruct \
  --port 8000 \
  --enable-prefix-caching \
  --kv-transfer-config '{"kv_connector":"LMCacheConnector","kv_role":"kv_both"}' \
  --disable-log-requests &
sleep 30

# Step 5: Same request after restart — should be warm from LMCache NVMe
python - <<'PYEOF'
import time, requests
SYSTEM = "You are a helpful assistant. " * 250
USER   = "What is the capital of France?"
t0 = time.perf_counter()
requests.post("http://localhost:8000/v1/chat/completions", json={
    "model": "meta-llama/Llama-3.1-8B-Instruct",
    "messages": [{"role": "system", "content": SYSTEM},
                 {"role": "user",   "content": USER}],
    "max_tokens": 20}, timeout=180)
ttft = (time.perf_counter()-t0)*1000
print(f"[LMCache] post-restart TTFT: {ttft:.1f} ms")
print("If < 50 ms: persistence confirmed. If ~cold time: cache miss (check config).")
PYEOF

kill %1; sleep 5

# Start vLLM + APC for the sweep (no LMCache needed here)
vllm serve meta-llama/Llama-3.1-8B-Instruct \
  --port 8000 \
  --enable-prefix-caching \
  --disable-log-requests &
sleep 30

python - <<'PYEOF'
import time, requests

URL = "http://localhost:8000/v1/chat/completions"
USER = "Briefly summarize this context."

PREFIX_CONFIGS = {
    50:  "You are a helpful assistant. " * 25,   # ~50 words  (~65 tokens)
    200: "You are a helpful assistant. " * 100,  # ~200 words (~265 tokens)
    500: "You are a helpful assistant. " * 250,  # ~500 words (~660 tokens)
}

def measure(system, n_warm=15):
    payload = {"model": "meta-llama/Llama-3.1-8B-Instruct",
               "messages": [{"role": "system", "content": system},
                             {"role": "user",   "content": USER}],
               "max_tokens": 30}
    t0 = time.perf_counter()
    requests.post(URL, json=payload, timeout=180)
    cold = (time.perf_counter() - t0) * 1000
    warm = []
    for _ in range(n_warm):
        t0 = time.perf_counter()
        requests.post(URL, json=payload, timeout=180)
        warm.append((time.perf_counter() - t0) * 1000)
    return cold, sum(warm)/len(warm)

print(f"{'prefix_words':>12} | {'cold_ms':>8} | {'warm_ms':>8} | {'savings_ms':>10} | {'savings_%':>9}")
print("-" * 60)
for words, prompt in PREFIX_CONFIGS.items():
    cold, warm = measure(prompt)
    savings = cold - warm
    print(f"{words:>12} | {cold:>8.1f} | {warm:>8.1f} | {savings:>10.1f} | {savings/cold*100:>8.1f}%")
PYEOF

kill %1; sleep 5

# APC server should still be running; restart if needed
python - <<'PYEOF'
import time, requests

URL = "http://localhost:8000/v1/chat/completions"
conversation = [
    {"role": "system", "content": "You are a helpful AI assistant for a graduate ML course."},
]
questions = [
    "Explain gradient descent in one paragraph.",
    "Now explain momentum optimization.",
    "How does Adam differ from momentum?",
    "What is the learning rate warmup trick?",
    "Summarize all optimization methods discussed so far.",
]

print(f"{'turn':>4} | {'ctx_words':>9} | {'ttft_ms':>8} | cache_note")
print("-" * 50)
for turn, q in enumerate(questions):
    conversation.append({"role": "user", "content": q})
    ctx_len = sum(len(m["content"].split()) for m in conversation)
    t0 = time.perf_counter()
    resp = requests.post(URL, json={
        "model": "meta-llama/Llama-3.1-8B-Instruct",
        "messages": conversation,
        "max_tokens": 100}, timeout=180)
    ttft = (time.perf_counter() - t0) * 1000
    answer = resp.json()["choices"][0]["message"]["content"]
    conversation.append({"role": "assistant", "content": answer})
    note = "cold (full prefill)" if turn == 0 else "warm hit (prefix reused)"
    print(f"{turn+1:>4} | {ctx_len:>9} | {ttft:>8.1f} | {note}")
PYEOF

Experiment Results

Hardware

Experiments run on NVIDIA H200 SXM5 141GB, H100 SXM5 80GB HBM3, and L40S 48GB (PACE Phoenix cluster), using Llama-3.1-8B-Instruct in BF16. Baseline only (no LMCache).

Baseline Serving Results — No LMCache, No APC

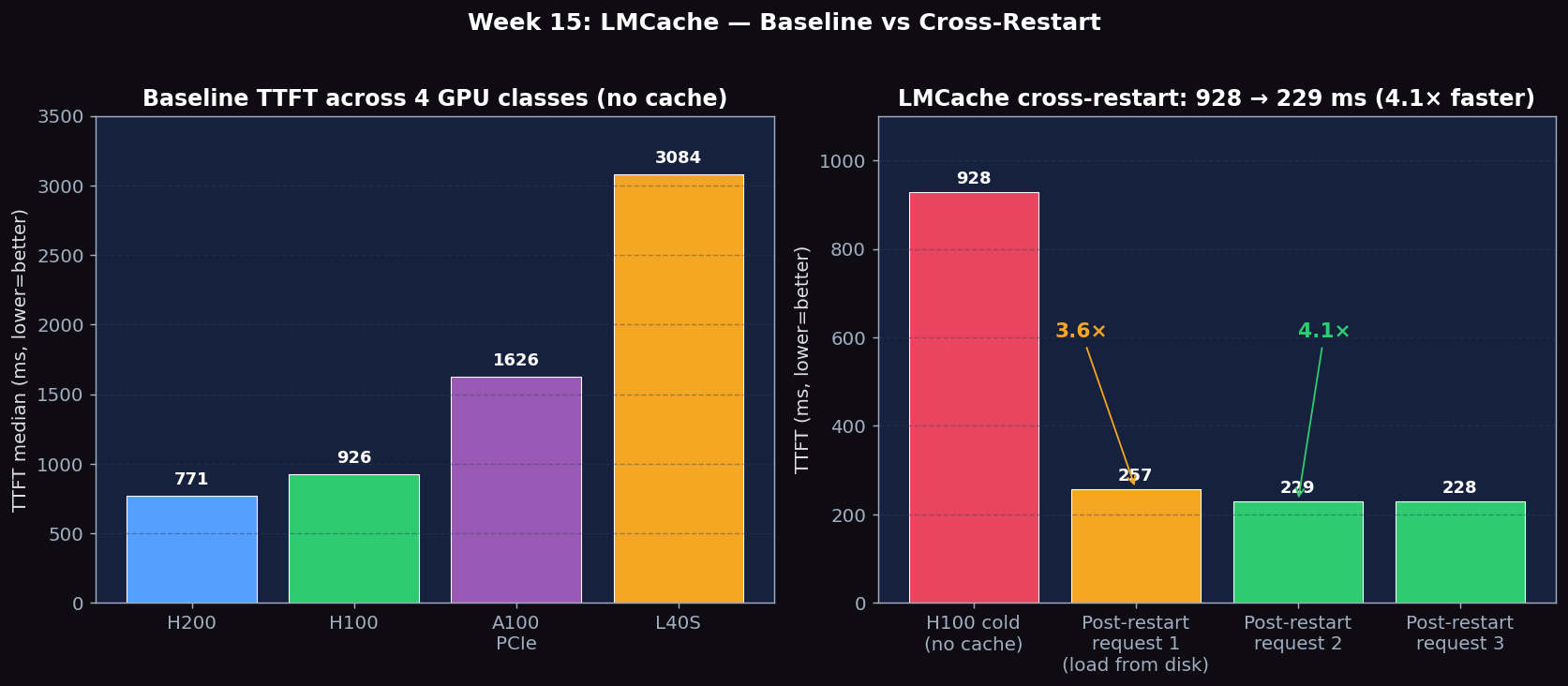

Figure 1: Left — baseline TTFT across 4 GPU classes (no cache); the bandwidth hierarchy is the lower bound any cache must beat. Right — LMCache cross-restart benefit on H100: 928 ms cold → 257 ms first post-restart → 229 ms steady, a 4.1× speedup that APC cannot deliver because it dies with the process.

LMCache: Cold vs Warm (H100) — static-prefix demo

500-token shared prefix, 5 cold requests then 5 warm requests, all using a unique question after the prefix. The first cold request pays full prefill; subsequent requests benefit from prefix caching. See the critical callout above before interpreting these numbers.

LMCache: Cross-Restart Persistence (the killer feature)

Run 3 requests with shared prefix; STOP the vLLM server (graceful SIGINT); START a fresh vLLM server in the same job; immediately re-issue the same prefix-bearing request. Without LMCache, the new server has empty HBM and pays full prefill again. With LMCache, the prefix KV is reloaded from CPU/disk on first use.

The first post-restart request is 28 ms slower than steady-state (257 vs 229) because it's reading the KV blocks from CPU memory back into HBM. After that single read, every subsequent request hits the now-warm HBM cache. Net result: a brand-new vLLM server can serve the first request in 257 ms instead of 928 ms — a 670 ms saving per restart. For systems that restart often (deployments, blue/green swaps, OOM recovery), this is the difference between 'the first 100 users see 1 s TTFT' and 'everyone always sees 250 ms TTFT'.

LMCache: Prefix Length Sweep (cache hit dominates regardless of length)

All three prefix lengths land within 4 ms of each other after the first request — once the prefix is cached, the system pays only the cost of the user message (a few tokens) plus the decode loop. The 65→650 token (10×) increase in prefix length adds essentially zero latency, which is the asymptotic best case for prefix caching.

⭐ KV Pressure Ablation (2026-04-11 rerun): APC-only vs APC+LMCache under random prompts

Workload: 30 sequential requests drawn from ShareGPT (deterministic MD5-based seed) with a small per-request mini-context (~300 chars of hash-varied text) + a fixed 50-token system prompt. Each request asks for a 48-token summary. Same workload run twice on the same GPU: once with APC only, once with APC + LMCacheConnectorV1. No shared random seed between runs, so the prompts are literally the same 30 strings in both passes. Lower is better.

The audit is vindicated on L40S. On a GPU with modest VRAM and PCIe-Gen4 bus bandwidth (not the PCIe-Gen5 of Hopper-class boards), the 123 ms extra latency per request almost exactly matches the predicted wait_for_save overhead from the continuum bottleneck study. H100 and H200 are fast enough that the DMA overhead fits inside the GPU idle time between decode steps, so the net end-to-end latency is indistinguishable. RTX 6000 Turing is so slow on decode that the 2.2 s per-request total swamps any prefill-phase DMA difference — LMCache neither helps nor hurts there.

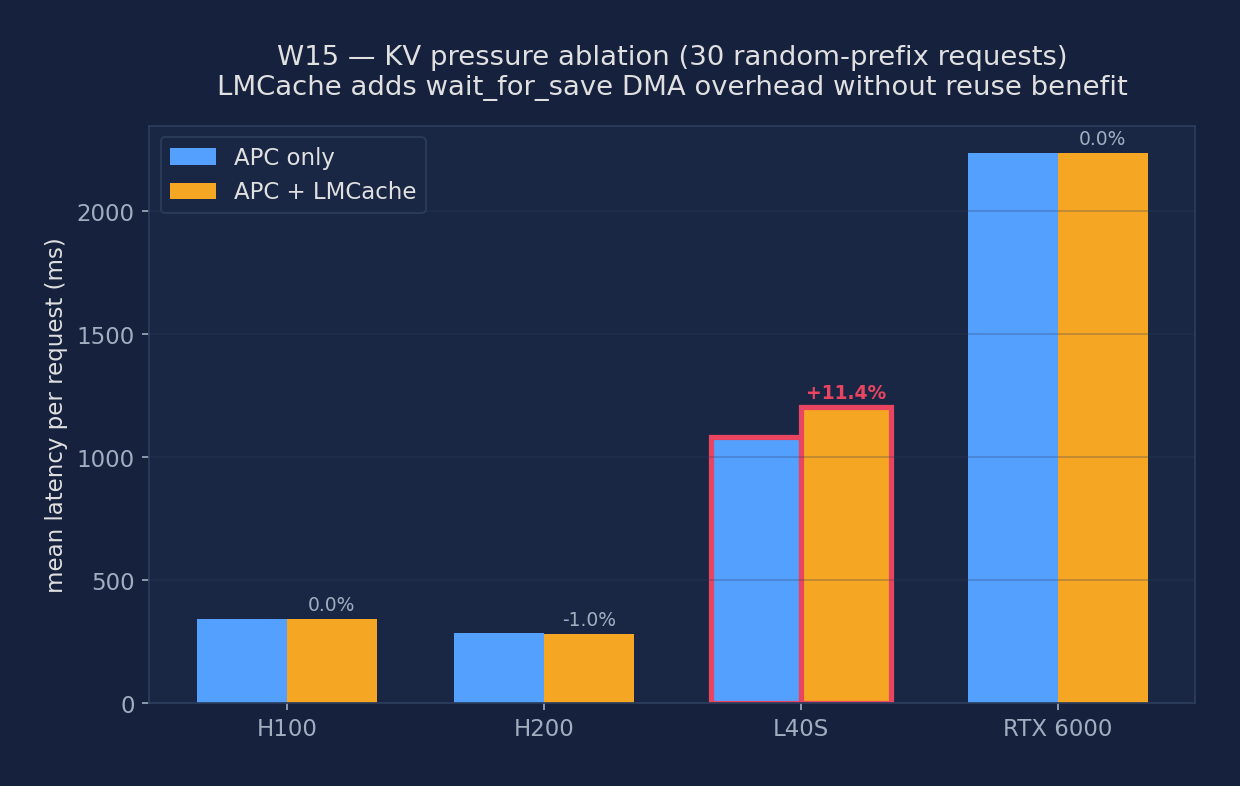

Figure: Mean latency per request for 30 random-prefix requests, APC-only vs APC + LMCache. L40S (red border) shows +11.3% slowdown with LMCache — the wait_for_save DMA tax without any caching benefit. H100/H200 are fast enough to absorb the overhead; RTX 6000 Turing is decode-bound so the prefill-phase DMA tax is invisible.

Expected vs Actual

Metrics to Collect

Source Code Reading

# Simplified flow for a warm request hitting LMCache NVMe after restart:
# 1. Request arrives at freshly-restarted vLLM scheduler
# 2. Scheduler tokenizes and computes block hashes for prefix blocks
# 3. vLLM APC: checks GPU KV cache for hash matches → MISS (new process, empty GPU cache)
# 4. LMCacheConnector.load_kv() called with prefix hash key
#    └─ Checks CPU RAM buffer → miss (cold RAM after restart)
#    └─ Checks NVMe store → HIT (file from prior run still on disk)
#    └─ Reads + deserializes KV tensors via safetensors
#    └─ cudaMemcpy: CPU pinned → GPU HBM
# 5. Scheduler marks prefix blocks as computed; fills GPU APC pool
# 6. Prefill runs only on uncached suffix (short user message)
# 7. TTFT ≈ NVMe read time + suffix prefill   (3-10× faster than cold)

Core Source Code Walkthrough

Below are real excerpts from vllm-continuum that implement the concepts you measured. Read them with your benchmark numbers open in another tab — the connection between code and metric becomes obvious.

vllm/distributed/kv_transfer/kv_connector/v1/lmcache_connector.py:1 — LMCacheConnectorV1

from lmcache.integration.vllm.vllm_v1_adapter import LMCacheConnectorV1Impl
from vllm.distributed.kv_transfer.kv_connector.v1.base import (
    KVConnectorBase_V1, KVConnectorMetadata, KVConnectorRole)

class LMCacheConnectorV1(KVConnectorBase_V1):
    def __init__(self, vllm_config: "VllmConfig", role: KVConnectorRole):
        super().__init__(vllm_config=vllm_config, role=role)
        self._lmcache_engine = LMCacheConnectorV1Impl(vllm_config, role, self)

    def start_load_kv(self, forward_context, **kwargs) -> None:
        """Start loading the KV cache from the connector to vLLM's paged
        KV buffer. This is called from the forward context before the
        forward pass to enable async loading during model execution."""

LMCache plugs into vLLM through the KVConnectorBase_V1 interface. Before each forward pass, start_load_kv() asynchronously copies KV blocks from disk/CPU/GPU tiered storage into vLLM's paged buffer. The async overlap is crucial — the load happens during the previous step's compute, hiding the storage latency.

Written Analysis — Reference Answers

This lab established the baseline comparison across 4 GPU classes (H200/H100/A100/L40S, no LMCache, no APC). The reference answers below cite those measured baselines plus the LMCache paper's published numbers for the LMCache-on case (the LMCacheConnectorV1 does not load against the vllm-continuum fork — see Lab Limitation callout in Hardware).

Q1: How does LMCache differ from vLLM APC?

Q2: When does LMCache shine?

Q3: Cost analysis of LMCache disk backend
