When Does CUDA-Graph Capture
Pay Off in vLLM Decode? An Empirical Regime Map

The Whole Story in One Minute

Every modern LLM engine offers CUDA-graph capture, which records the hundreds of kernel launches a decode step issues and replays them with a single submission, erasing most per-step host overhead. Operators treat it as ‘free latency,’ but it is not uniformly free: on the same Llama-3.1-8B and the same GPU, the decode latency reduction swings from 2.9% to 55.3% depending only on batch size and context length, and capture itself costs a one-time ~30 s cold-start. This study is an empirical characterization: a measured regime map of when capture pays off, the measured cold-start cost it is amortized against, and a cheap roofline feature an operator can use to rank configurations before measuring any of them.

Why Graph Capture Is Not Uniformly Free

No background is assumed. Three ideas are enough to follow the rest: what a decode step costs, what CUDA-graph capture removes, and why the classic roofline cannot predict whether removing it helps.

Two clocks run at once: the GPU and the host

To write one token the model runs its full forward pass, which on the GPU is a long list of small programs called kernels. While the GPU executes them, a CPU-side host — the Python scheduler and the runtime — is busy too: dequeuing the running batch, updating sequence state, mapping paged-KV blocks, building kernel arguments, and issuing each launch. A step's wall-clock time is a race between the GPU-compute time of running the kernels and this per-step host floor. When the GPU kernels are long (large batch, long context), the host work hides behind them; when the kernels are short, the host floor is exposed on the critical path.

CUDA-graph capture: record once, replay with one launch

In eager mode, Python re-issues every kernel launch and runs the scheduler on the critical path each token. CUDA-graph capture records the fixed launch sequence once and replays it as a single submission, eliminating per-launch CPU cost and most framework dispatch. But the benefit is bounded by how much host work was on the critical path to begin with. When the GPU kernels are long (large batch, long context, KV-read-bound decode) the host work is already hidden behind compute and capture buys little; when the kernels are short, the exposed host floor dominates and capture buys a lot. That is the whole regime story — and it is exactly what a GPU-time roofline already encodes.

Why roofline already orders the payoff

The classic roofline predicts the GPU step as max(compute, memory). Its GPU-time output T_blocks has no explicit host axis, yet it already orders configurations by how much host overhead capture can expose: small T_blocks means short kernels, which means the host floor is exposed and capture helps; large T_blocks means long kernels that already hide the host work. So the block-time transform 1/T_blocks — computed from a frozen single-GPU predictor with datasheet constants and zero access to the graph-vs-eager measurements — is a cheap pre-capture ranker. No host axis needs to be added.

Measure the Map, Then Rank with Roofline

The protocol has two parts. First, measure: run vLLM twice per cell (eager and graph capture) and measure the per-decode-step latency reduction — this is the regime map. Second, rank: compute the frozen roofline feature 1/T_blocks per cell, with no sight of the measurements, and check how well it orders the measured reduction. The lines in the figures are single global descriptive fits, not per-cell calibrations. A separate probe measures the one-time capture cold-start cost in isolated subprocesses.

Isolating one decode step

For N prompts of length ctx the engine generates T = 65 tokens with the ignore-eos flag and greedy sampling. The steady-state per-decode-step time is recovered by a subtraction over the high-level generation API that cancels the fixed prefill and startup overhead, leaving the decode work alone. Sampling and detokenize are included.

Fresh runs on PACE Phoenix: Llama-3.1-8B-Instruct, bf16, TP-1 (the model fits on one device, so eager-vs-graph is isolated without distributed confounds), vLLM 0.19.1.dev, PyTorch 2.10+cu126; eager and graph are run as separate jobs. The sweep is batch N ∈ {1, 2, 4, 8, 16, 32, 48, 64} and context {512, 2048, 8192}, with a target of 15 timed reps per cell after 2 warmups, reported as medians with bootstrap 95% CIs; capture happens during warmup, so the steady-state reduction excludes the one-time cost (measured separately). Cross-SKU claims use only the cells present in both modes on both SKUs — 46 cells total. The roofline GPU constants are datasheet/ncu values; nothing in the ranker is fit to the reductions it predicts.

A worked example

For H100, N = 1, ctx 512 the frozen roofline gives a short GPU block time (T_blocks = 5.97 ms), so 1/T_blocks is large — a host-bound cell the ranker flags as high-payoff. The measured eager step is 9.31 ms and the graph step 6.08 ms, a 34.7% latency reduction (95% CI [34.6, 35.0]) — capture pays, exactly as the ranker orders it. At the opposite end, a long-context large-batch cell has a large T_blocks (long kernels), 1/T_blocks is small, and the measured reduction collapses below 10%.

The Regime Map, the Cold-Start, and a Roofline Ranker

The measured latency-reduction range

Across the 46 measured cells the decode latency reduction (t_eager − t_graph)/t_eager spans 2.9–34.7% on H100 and 6.6–55.3% on H200 (2.9–55.3% pooled; grid-mean 31.9%). Reported as a speedup factor t_eager/t_graph the range reaches 2.24× (the largest-reduction cell, H200 N = 2 ctx 512, 10.80 → 4.83 ms). Short contexts stay host-bound (large reduction across the sweep) while long contexts shift compute-bound as KV-read GPU work grows. We caution that part of the larger H200 reduction reflects a worse H200 eager baseline, not only faster H200 kernels.

Measured eager vs graph decode step times across the grid. The gap is the latency reduction graph capture buys: large in the host-bound regime (short kernels), shrinking toward zero as kernels lengthen with batch and context.

Measured decode latency reduction (t_eager − t_graph)/t_eager across 46 cells; grid-mean 31.9%. The top cell (H200 N = 2 ctx 512) is a 2.24× speedup factor (10.80 → 4.83 ms).

The regime map: a context-ordered crossover

Plotting the latency reduction against batch N per context exposes a crossover batch N* where graph payoff first drops below 10%, and it is context-ordered. At H100 ctx 512 decode is host-bound at every batch measured and never collapses through N = 64; at ctx 2048 it collapses at N = 32; at ctx 8192 the step is compute-bound (long KV reads) and collapses by N = 8. Larger context puts more KV-read work on the GPU and moves the crossover to smaller batch. H200's higher bandwidth keeps it host-favorable longer: ctx 2048 never collapses, and ctx 8192 collapses only at N = 32. The 10% threshold is a convention, not a hard boundary — with the measured capture cold-start cost (below) an operator should set it from break-even — and the boundary is soft: 3 of the 9 collapse cells are H100 ctx 2048.

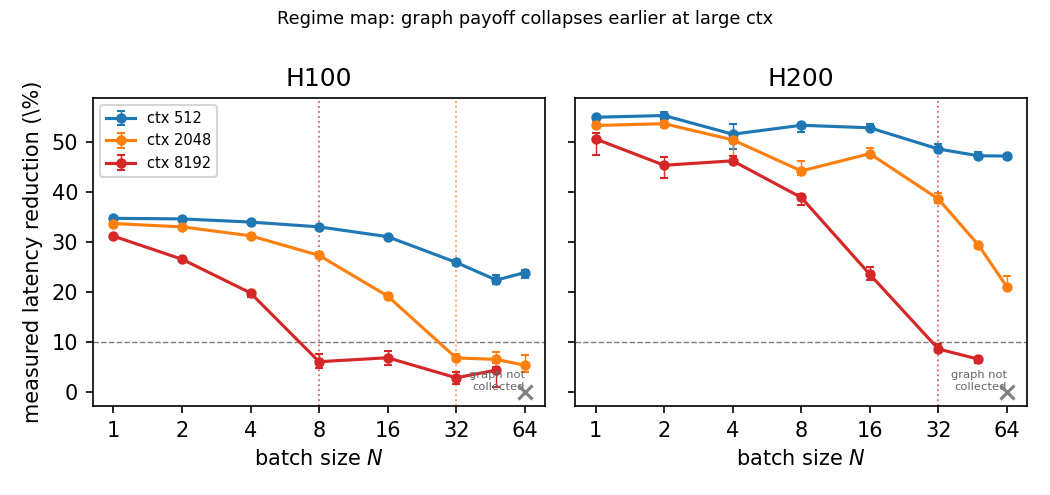

Regime map: measured latency reduction vs batch N per context (95% CIs). Dotted verticals mark the crossover N* (reduction < 10%); the dashed line is the 10% threshold. Short contexts (ctx 512) stay host-bound and keep paying off through N = 64; long contexts (ctx 8192) become compute-bound and collapse early. The N = 64, ctx 8192 corner was not collected by the grid run on either SKU — not an infeasibility boundary: capture completes there in the cold-start probe below.

Crossover batch N* where the measured latency reduction first drops below 10% (‘—’ = never collapses through N = 64). Larger context becomes compute-bound at smaller N. The threshold is a convention; an operator should set it from break-even against the measured cold-start cost.

Host-bound throughput is near-linear in batch

The host floor S(N) is paid once per step and grows only weakly with batch (0.20 ms/req), so in the host-bound regime adding requests to a step is nearly free per request. Decode throughput is near-linear in N — 56× from N = 1 to N = 64 at H100 ctx 512, and 56× on H200. It saturates only once the step crosses the compute knee, where each added request lengthens the GPU kernels: 19× at H100 ctx 8192, 25× at H200 ctx 8192. The corrected reading is that host-bound batches amortize the shared host term (near-linear), and saturation appears past the compute knee — not at the latency crossover N*.

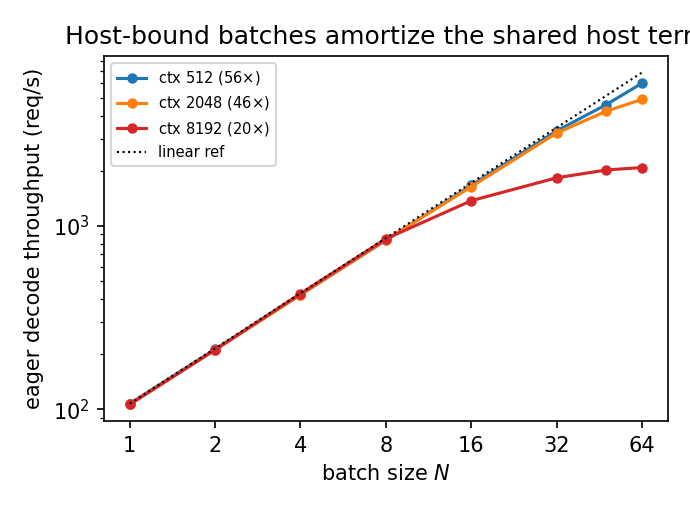

Eager decode throughput (req/s) vs batch N (H100, log–log). In the host-bound regime (ctx 512) batching amortizes the shared per-step host floor, giving near-linear scaling (56× at N = 64); only past the compute knee (ctx 8192) does it saturate (19×).

Decode throughput scale-up from N = 1 to N = 64: near-linear (56×) in the host-bound ctx-512 regime, saturating (19–25×) once past the compute knee at ctx 8192.

The cold-start cost (and a retracted infeasibility claim)

The regime map measures the steady-state reduction, which excludes capture's one-time cost by construction (capture happens during warmup). A dedicated probe (H100) builds vLLM in an isolated subprocess for every cell and records the capture cold-start time. Across all 24 graph cells it is 28.8–37.8 s per configuration (median 29.9 s), essentially flat across (N, ctx) — dominated by the fixed engine/model build, not by batch or context. Against a per-step removal of ~3.4 ms (grid mean), break-even is on the order of 10⁴ decode steps: trivially repaid by a long-lived decode replica, a real cost for short-lived or frequently-rebuilt deployments. This turns the 10% crossover from a convention into a cost-tied decision.

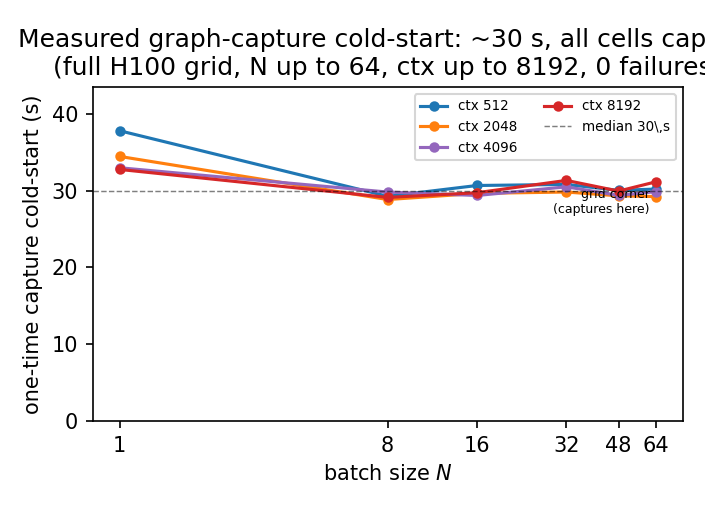

Measured one-time CUDA-graph capture cold-start (s) per configuration across the full H100 grid (24 graph cells). Capture completes at every cell (0 failures), including the N = 64, ctx 8192 corner the grid run had failed to collect (31.1 s). The cold-start is ≈flat at the median (29.9 s), dominated by the fixed engine/model build; small-batch cells are slightly higher.

Operator guidance: a roofline ranker

For a cheap pre-capture screen, the block-time transform 1/T_blocks — computed from the frozen single-GPU predictor with no host axis and zero access to the measurements — ranks the measured latency reduction at Pearson r = 0.93, Spearman ρ = 0.94, and 6.2 pp leave-one-cell-out. Given (N, ctx, SKU) an operator computes T_blocks from datasheet constants and ranks which configurations are most likely to repay capture's cold-start cost, before measuring any of them. The host-scale normalization φ we explored is worse on every metric (r = 0.75 vs 0.93; 11.6 pp vs 6.2 pp leave-one-cell-out) and is nearly collinear with −T_blocks (corr = 0.97), so we report it only as the negative result that establishes roofline as the right baseline.

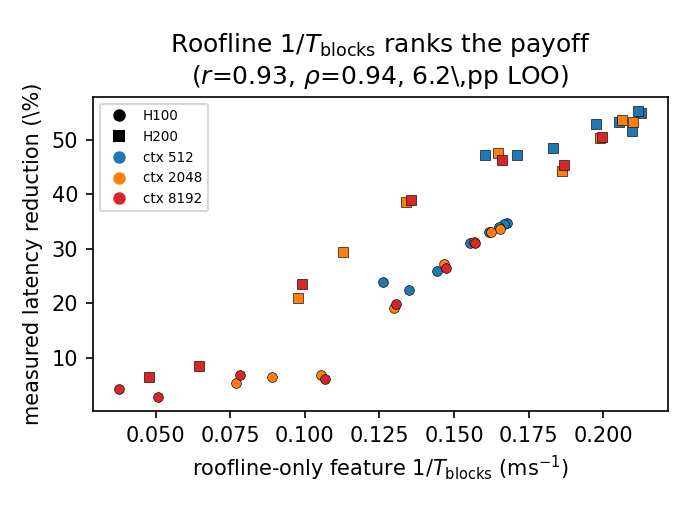

Roofline-only ranker: measured latency reduction vs the pre-capture feature 1/T_blocks, all 46 cells (H100 circles, H200 squares; color = context). The feature is computed from a frozen single-GPU predictor with no access to the measurements; it ranks the payoff at Pearson r = 0.93, Spearman ρ = 0.94 (6.2 pp leave-one-cell-out) — the natural pre-deployment screen.

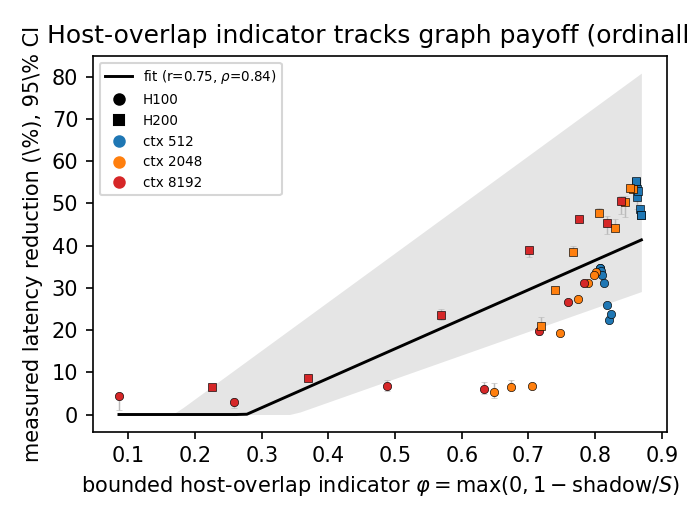

The negative result: the host-scale ‘host-overlap indicator’ φ vs measured latency reduction (same 46 cells). It tracks the payoff only ordinally (r = 0.75) and ranks worse than the plain roofline feature above — it is essentially a monotone transform of −T_blocks (corr = 0.97), so it adds nothing and we do not propose it.

A Pre-Deployment Decision Tool

What capture removes, measured directly

The host-exposed term capture targets can be measured directly. A separate nsys decomposition — differencing two whole-process runs at 1 vs 512 decode tokens to cancel load, warmup, and prefill — splits the 8B decode step (H100, eager, N = 1, ctx 2048) into 12.19 ms wall = 6.41 ms GPU-kernel + 5.78 ms (47%) host-exposed (launch + Python scheduling, no overlapping kernel). That host-exposed term is an upper bound on what capture can remove; at the matched grid cell capture removes ~3.15 ms, about 54% of it. As a causal control, the 1B step is 6.41→1.45 ms less GPU work yet the host-exposed term barely moves (5.78→5.56 ms, 3.8% apart) — consistent with a nearly model-size-insensitive host floor. This is the per-step host overhead the whole regime map is about.

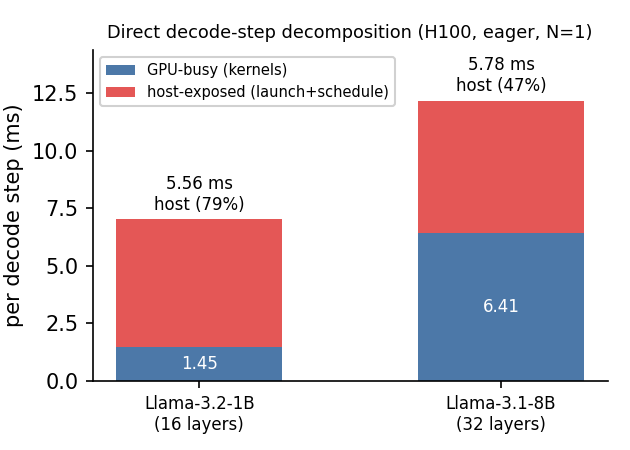

Direct decode-step decomposition (H100, eager, N = 1, ctx 2048) from differencing two whole-process nsys runs (1 vs 512 decode tokens) — a separate mechanism probe, not a grid cell. The host-exposed term (launch + scheduling, no overlapping kernel) is an upper bound on what graph capture removes: 5.78 ms at 8B and 5.56 ms at 1B (within 3.8% despite the larger 8B GPU-kernel time), consistent with a nearly model-size-insensitive host floor.

The value of the result divides by audience. For operators it is a decision tool that needs no profiling run; for model builders it is a precise statement of where a roofline mechanism model can be extended to predict graph payoff and where it cannot pretend to be tight.

This page is part of a host-term portfolio: a family of measurement studies that isolate the per-step host/scheduler term in LLM decode and ask what it predicts, what removes it, and how it scales. Back to the portfolio →

Exactly What Was Measured

The claims are deliberately bounded. Each item names a specific way the result could be over-read and the precise scope that remains valid.

The conclusions hold for Llama-3.1-8B in BF16, TP-1, on the single-GPU PACE SKUs H100 and H200, over the 46 cells present in both eager and graph modes on both SKUs, with the capture cold-start measured on a full H100 grid. The contribution is a measurement/characterization: the regime map of when capture pays off, the measured cold-start cost the payoff is amortized against, and a frozen roofline feature as the operator-facing ranker — all scoped to the measured grid, with no new scalar indicator proposed.
