Project Core Review

What our LLM inference-time predictor actually is, what the data lets us honestly claim, and where new experiments are still required.

Internal self-audit Every number traced to results/ Honest scope, including negative results

Bracket legend: each answered question is tagged with its category and a status pill.

0. The honest framing — two halves, not a speedup paper

The two-half reframing is correct, but with one mismatch the data forces us to confront: the second half, as measured, does NOT demonstrate reduced inference time — it is a signal-fidelity and integration study with disclosed negative results.

QuestionDoes the paper present the 2-part structure?

Partial match. The paper calls it 'a per-step predictor plus a utility study'. 'Pure-input' overstates Half 1 (it needs microbenchmarks + ncu counters per architecture, plus one host-floor scalar per trace in calibrated mode). Half 2 is a utility study where two of four pre-registered claims FAIL; the one real improvement is keep-warm routing (−30 ms TTFT). A separate tier swaps the predictor into four tools, claiming accuracy-at-lower-cost, not speedup.

Why this matters. If the headline is 'we improve inference time', the data does not yet support it (run Section 4's experiments). If the headline is 'a cheap, explainable, transferable decision signal that drops into existing systems', the data largely supports it.

1. Part one — what the predictor actually computes

Half one predicts one served engine step. The classic approach decides the bottleneck per kernel from FLOPs vs bytes and divides by peak rates — needing two numbers a GPU rarely sustains, patched with an unexplained efficiency factor. We replace that factor with a small product of factors, each a concrete thing the GPU does after launch.

1.1 The step-time equation — and why it is not three corrections

QuestionDo we only have these three changes?answered

No — three is an undercount; the honest structure is ~7 additive terms and 9+ factors. The step time is:

(1) $$T_{\mathrm{step}} \;=\; \max\!\big(T_{\mathrm{blocks}},\; N_{\mathrm{kern}} T_{\mathrm{launch}}\big) \;+\; \alpha(N,T_{\mathrm{new}})\,S(N) \;+\; T_{\mathrm{samp}}$$

Here $T_{\mathrm{blocks}}$ is the GPU compute body of the step. It expands over the $N_L=32$ layers as:

(1a) $$T_{\mathrm{blocks}} \;=\; N_L\big(t_{\mathrm{proj}} + t_{\mathrm{attn}}\big) \;+\; t_{\mathrm{light}}$$

where $t_{\mathrm{proj}}$ (the four projection GEMMs) and $t_{\mathrm{attn}}$ are per-layer, while $t_{\mathrm{light}}$ carries its own $N_L$. Each operator term in (1a) is itself a roofline max (eq 1c below); its compute branch efficiency is the five-factor model, clock as an explicit first-class factor:

(1b) $$\eta_c \;=\; f_{\mathrm{clk}}\cdot\eta_{\mathrm{cluster}}\cdot\eta_{\mathrm{active}}\cdot\eta_{\mathrm{duty}}\qquad(\eta_{\mathrm{delivery}}\equiv 1)$$

Here $f_{\mathrm{clk}} = f_{\mathrm{sustained}}/f_{\mathrm{boost}}$ is the explicit clock factor, $\eta_{\mathrm{cluster}}$ is SM-fill, $\eta_{\mathrm{active}}$ the time-domain SM-occupancy, $\eta_{\mathrm{duty}}$ the tensor-pipe duty; delivery $\equiv 1$. The clock is its own factor — not absorbed into a fitted ceiling. Beyond compute the step adds a memory branch $\eta_{\mathrm{mem}}$, the attention term (four factors), the launch floor, the overlap leak, and sampling — ~7 terms / 9+ factors, not three.

Each operator term is a roofline max — compute branch vs memory branch

The five-factor $\eta_c$ of eq (1b) is only the COMPUTE branch. Each per-layer operator term in eq (1a) — the projection GEMMs of $t_{\mathrm{proj}}$ and the attention $t_{\mathrm{attn}}$ — is itself a roofline max. Take $t_{\mathrm{proj}}$ ($t_{\mathrm{attn}}$ has the same structure, §1.9): it sums the four projection GEMMs, each the larger of compute and memory time. For one GEMM: $M$ = new-token rows, $N_{op}\times K_{op}$ = weight-matrix shape, $\mathrm{BP}=2$ bytes, $P_{\mathrm{boost}}$ = datasheet boost FLOP/s, $\mathrm{BW}_{\mathrm{peak}}$ = datasheet HBM bandwidth. $\eta_c$ sets the compute ceiling, $\eta_{\mathrm{mem}}$ the memory ceiling:

(1c) $$t_{\mathrm{proj}} = \sum_{op}\max\!\big(T_{\mathrm{compute}},\, T_{\mathrm{memory}}\big),\quad T_{\mathrm{compute}} = \frac{2\,M\,N_{op}K_{op}}{P_{\mathrm{boost}}\,\eta_c},\quad T_{\mathrm{memory}} = \frac{B_{op}}{\eta_{\mathrm{mem}}\,\mathrm{BW}_{\mathrm{peak}}},\quad B_{op} = \mathrm{BP}\,(M K_{op}+N_{op}K_{op}+M N_{op})$$

At small $M$ (decode) the memory branch wins (full weight read → DRAM-bound); at large $M$ (prefill) compute wins — exactly the AI-vs-ridge regime column in Table A.

How $\eta_{\mathrm{mem}}$ is obtained — a measured pct-of-peak, not a derived stack

The memory branch's $\eta_{\mathrm{mem}}$ is a single number — the fraction of peak HBM bandwidth a memory-bound streaming kernel actually sustains, which is what turns the byte count $B$ into a time:

$$\eta_{\mathrm{mem}} \;\equiv\; \frac{\mathrm{BW}_{\mathrm{achieved}}}{\mathrm{BW}_{\mathrm{peak}}}\qquad\Longrightarrow\qquad T_{\mathrm{memory}} \;=\; \frac{B}{\eta_{\mathrm{mem}}\,\mathrm{BW}_{\mathrm{peak}}} \;=\; \frac{B}{\mathrm{BW}_{\mathrm{achieved}}}$$

So it is neither derived from geometry (unlike $\eta_{\mathrm{cluster}}$) nor fitted (unlike $\eta_{\mathrm{duty}}$): it is read DIRECTLY off one hardware counter — Nsight Compute's gpu__dram_throughput.avg.pct_of_peak_sustained_elapsed — at the $M{=}64$ DRAM-bound point. That percentage IS $\eta_{\mathrm{mem}}$, the memory-side analogue of $f_{\mathrm{clk}}$. One constant suffices because a streaming kernel saturates DRAM at a size-independent fraction of peak; only bytes $B$ and datasheet $\mathrm{BW}_{\mathrm{peak}}$ vary. Per-GPU ($M{=}64$ bench): H100 0.755, H200 0.669, L40S 0.884. A100-80 exception: bench 0.509 but engine $M{\le}32$ sustains 0.75 (kernel-dispatch gap) — 0.75 used.

How the four factors' values are determined (the exact counters)

Each factor maps to one specific measurement; only $f_{\mathrm{clk}}$ needs a per-deployment reading.

FactorWhat it measuresExact source / counterFormula
$f_{\mathrm{clk}}$sustained clock fractionpynvml SM-clock @20ms ÷ boost; cross-check ncu sm__cycles_elapsed.avg.per_second$f_{\mathrm{sustained}}/f_{\mathrm{boost}}$
$\eta_{\mathrm{cluster}}$SM / wave fillncu launch__grid_size, launch__sm_count (or pre-runtime from the tile)$G/(\lceil G/N_{\mathrm{SM}}\rceil\,N_{\mathrm{SM}})$
$\eta_{\mathrm{active}}$SM occupancy (time)ncu sm__cycles_active.sum, sm__cycles_elapsed.avg, $N_{\mathrm{SM,used}}{=}\min(G,N_{\mathrm{SM}})$ (pinned clock)$(\texttt{active.sum}/N_{\mathrm{SM,used}})/\texttt{elapsed.avg}$
$\eta_{\mathrm{duty}}$tensor-pipe dutyncu sm__pipe_tensor_cycles_active.avg.pct_of_peak_sustained_active (Hopper) or sm__pipe_tensor_op_hmma_cycles_active... (Ampere/Ada)counter/100

1.2 The frequency claim — valid, but sharper than the slogan

ChallengeIs the frequency claim valid?answered

Partially valid. The clock droop is real and large — but from the real-DVFS loop, NOT the pinned ncu pass (which fixes the clock to isolate geometry, so its ratio is an artifact). Natural $f_{\mathrm{clk}}$ ≈ 0.68 (H100, 1350/1980, 32% droop), 0.74 (H200), 0.82 (A100-80), 0.56 (L40S). Under real DVFS H100 qkv tops near 681 TFLOP/s = 0.69 of the 989 spec, and the clock droop is essentially the whole gap (η_noclk near its ceiling at large M).

But 'lower clock makes GEMM slower' (a throughput decline) is FALSE on well-provisioned parts: H100/A100 decline 0.0%, H200 −0.6%, because rising geometric efficiency ($\eta_{\mathrm{noclk}}$ 0.18 to 0.95) masks the clock. Throughput only declines on tight-cap parts (L40S −15.4%, ±0.8 over 3 repeats; Blackwell ~3%, projected). A locked-clock control collapses the L40S decline to 0.0%.

See the companion deep dive for the full treatment. The Clock Is Not a Constant

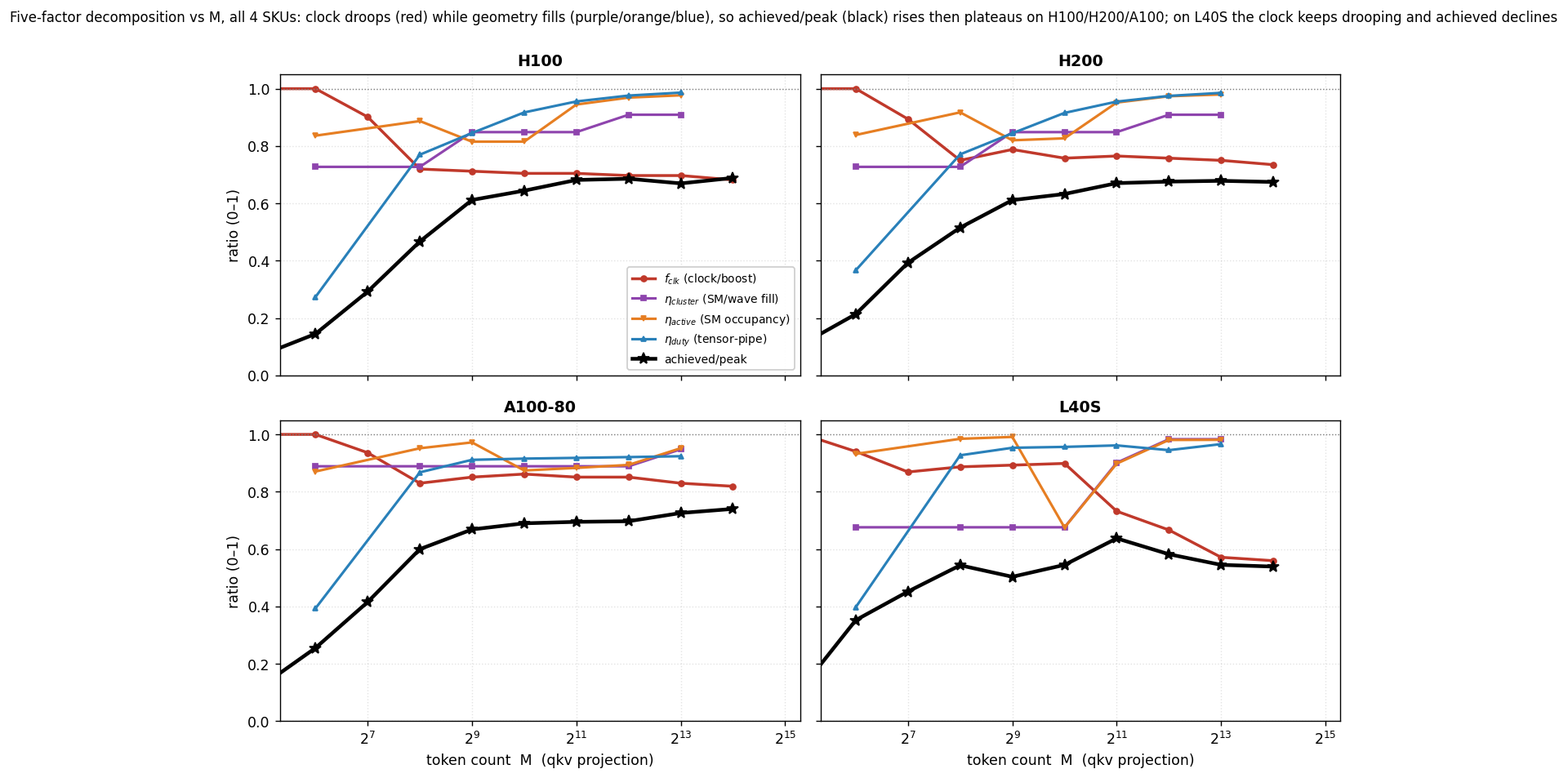

All four SKUs (H100, H200, A100-80, L40S), qkv vs token count M: f_clk falls at the power cap while geometric efficiency rises, so achieved/peak rises then plateaus on H100/H200/A100 and declines on the tight-cap L40S
Figure 1 (all four SKUs, qkv) — the masking mechanism, from measured data. Each panel is one GPU; H200 is the worked example. x: token count $M$. Red $f_{\mathrm{clk}}$ (real DVFS) steps down at the power cap; purple $\eta_{\mathrm{cluster}}$, orange $\eta_{\mathrm{active}}$ and blue $\eta_{\mathrm{duty}}$ (measured) rise; their product $\eta_{\mathrm{noclk}}$ rises 0.25 to 0.95; black achieved/peak rises then PLATEAUS — the clock droop is masked by rising geometry.

Every quantity behind the figure, traced to launch geometry: tile from the cuBLAS kernel name; cluster size / max-active from ncu (Hopper only); grid from launch__grid_size; output tiles $=\lceil M/M_t\rceil\lceil N/N_t\rceil$; tiles-per-CTA = output/grid; waves $=\lceil\text{grid}/N_{\mathrm{SM}}\rceil$.

Table A — full launch geometry behind Figure 1 (qkv, pinned ncu). Hopper grid = $\min(\text{output tiles},\,\text{cluster cap})$; saturates at the cap (112/120) beyond the knee, not growing toward 132. Ampere/Ada grid = output tiles. Hopper $\eta_{\mathrm{duty}}$ shown H100 / H200.
GPU ($N_{\mathrm{SM}}$) M tile $M_t{\times}N_t$ cluster (CTAs / max-active) output tiles grid (CTAs) tiles/CTA waves $\eta_{\mathrm{cluster}}$ $\eta_{\mathrm{duty}}$ AI ridge $\mathrm{AI}^\star$ regime
H100/H200 (132)6464×648 / 1596961.010.7270.29 / 0.3762295 / 206memory
H100/H200 (132)256128×1284 / 3096961.010.7270.76 / 0.77232295 / 206memory / compute
H100/H200 (132)1024128×12816 / 73841123.410.8480.92 / 0.92723295 / 206compute
H100/H200 (132)4096128×1288 / 15153612012.810.9090.98 / 0.971536295 / 206compute
A100-80 (108)6464×6496961.010.8890.4162156memory
A100-80 (108)256128×12896961.010.8890.87232156compute
A100-80 (108)1024256×1281921921.020.8890.92723156compute
A100-80 (108)4096128×2567687681.080.8890.921536156compute
L40S (142)6464×6496961.010.6760.4062419memory
L40S (142)256128×12896961.010.6760.93232419memory
L40S (142)4096128×128153615361.0110.9830.951536419compute

Why $\eta_{\mathrm{duty}}$ rises with $M$ on Hopper — tiles-per-CTA, not more CTAs

The intuition "wave full ⇒ constant duty" holds for one-tile-per-CTA kernels, not Hopper: the grid saturates at the cluster cap (~112–120) beyond the knee and does not grow with $M$ — instead each persistent CTA walks tiles-per-CTA = output/grid tiles (1.0→3.4→12.8), amortising its one-time pipeline prologue. Measured duty is well described by $\eta_{\mathrm{duty}} = 1/(1 + 0.31/\text{tiles-per-CTA})$ to 3 decimals. $M$ adds tiles-per-CTA, not CTAs.

Table B — $\eta_{\mathrm{duty}}$ vs tiles-per-CTA (H100 qkv, fixed 128×128 tile). Same tile, same per-CTA mainloop; duty rises only via prologue amortisation.
M grid (CTAs) output tiles tiles/CTA $\eta_{\mathrm{duty}}$ (ncu) $1/(1{+}0.31/\text{t/CTA})$
25696961.00.7640.764
10241123843.430.9170.917
4096120153612.80.9750.976

The four prediction formulas and their provenance — how far each factor is actually predicted

Given the tile + cluster size from the cuBLAS kernel name, what each factor of $\eta_c = f_{\mathrm{clk}}\,\eta_{\mathrm{cluster}}\,\eta_{\mathrm{active}}\,\eta_{\mathrm{duty}}$ is predicted by — four different provenance levels.

$$\begin{aligned} \eta_{\mathrm{cluster}} &= \frac{\text{grid}}{\lceil \text{grid}/N_{\mathrm{SM}}\rceil\,N_{\mathrm{SM}}},\quad \text{grid}=\min\!\big(\lceil M/M_t\rceil\lceil N/N_t\rceil,\ \text{cluster cap}\big)\\[4pt] \eta_{\mathrm{active}} &= \begin{cases}\,1-\dfrac{N_{\mathrm{SM}}W-\text{grid}}{N_{\mathrm{SM}}W}, & \text{Ampere/Ada (wave-tail),}\ W=\lceil \text{grid}/N_{\mathrm{SM}}\rceil\\[8pt] \dfrac{\text{tiles/CTA}}{\lceil \text{tiles/CTA}\rceil},\ \ \text{tiles/CTA}=\dfrac{\text{output tiles}}{\text{grid}}, & \text{Hopper (tile-tail)}\end{cases}\\[6pt] \eta_{\mathrm{duty}} &= \min\!\Big(\tfrac{\mathrm{AI}}{\mathrm{AI}^\star},\ \tfrac{1}{1+c/\text{tiles/CTA}}\Big),\quad \mathrm{AI}^\star=\tfrac{P_{\mathrm{boost}}}{\mathrm{BW}}\ \ (\text{roofline ridge}),\ c\ \text{calibrated per arch}\\[4pt] f_{\mathrm{clk}} &= f_{\mathrm{sustained}}/f_{\mathrm{boost}}\quad(\text{measured per operating point — no closed-form predictor}) \end{aligned}$$
Table C — provenance of each factor's prediction (DERIVED / FITTED / MEASURED).
factor provenance Ampere/Ada equivalent accuracy
$\eta_{\mathrm{cluster}}$DERIVED — exact integer geometry, no fitsame formula (grid = output tiles)Δ≈0
$\eta_{\mathrm{active}}$DERIVED tail + ~3% MEASURED residual (Hopper)wave-tail (residual <1%)m2048: Ampere <1%, Hopper ~3%
$\eta_{\mathrm{duty}}$two DERIVED terms (min); c FITTED per archtiles/CTA≡1 → 1/(1+c) + rooflinecompute-bound ~exact; small-M poor
$f_{\mathrm{clk}}$MEASURED — no predictive modelone reading per operating point

1.3 Why the SMs are not all filled — cluster co-residence cap, not a sync stall

IssueWhy aren't all 132 SMs filled?answered

Real, but the mechanism conflates two effects, and the Hopper-dominant one is not a sync stall. $\eta_{\mathrm{smused}}=\min(\text{grid},N_{\mathrm{SM}})/N_{\mathrm{SM}}$; at $M{=}2048$ the grid is 112 of 132 (0.848). cuBLAS uses 16-CTA (4×4) clusters; cudaOccupancyMaxActiveClusters caps co-residence at 7 (ncu launch__cluster_max_active-confirmed), so the persistent grid is 7×16=112 and 20 SMs are dark — GPC packing, not divisibility; a launch-time limit, not a runtime barrier.

On Ampere/Ada there are no clusters; the grid far exceeds SM count, $\eta_{\mathrm{smused}}=1.0$, and the residual is a wave tail (A100 11.1%, L40S 9.9% last-wave idle). At tiny sizes even Hopper has a true last-wave tail (o at $M{=}64$: 72 CTAs, $\eta_{\mathrm{wave}}=0.545$). The model captures both.

1.4 Why two factors, not one — occupancy time vs pipe duty

IssueWhy two parameters, not one?answered

First, the premise mislabels them: the cluster-finishing effect is in the SM-fill factor (1.3), not here. The two factors here, defined in equation (3), are orthogonal: $\eta_{\mathrm{active}}$ is a TIME-domain occupancy (load-imbalance / last-wave idle time); $\eta_{\mathrm{duty}}$ is a PIPE-domain duty (the fraction of active cycles the tensor pipe is issuing).

(3) $$\eta_{\mathrm{active}} = \frac{(\text{SM-active cycles})/(\text{SMs used})}{\text{elapsed cycles}},\qquad \eta_{\mathrm{duty}} = \frac{\text{tensor-pipe issuing cycles}}{\text{SM-active cycles}}$$

How obtained: both from pinned-clock (--clock-control base) Nsight Compute counters — $\eta_{\mathrm{active}}$ = (sm__cycles_active.sum ÷ sm__cycles_elapsed.avg), $\eta_{\mathrm{duty}}$ = sm__pipe_tensor_cycles_active.avg.pct.../100 (H200 qkv M=2048: 0.95, 0.955). To estimate: $\eta_{\mathrm{cluster}}$ is pure-parameter from the grid; $\eta_{\mathrm{duty}}$ saturates to a per-generation constant at large $M$; only $f_{\mathrm{clk}}$ needs a per-deployment reading.

They multiply to the single proposed quantity, but staying split is correct — different physics and shape-dependence. At $M{=}2048$: H100 0.946/0.955, A100 0.883/0.918, L40S 0.898/0.962. $\eta_{\mathrm{active}}$ falls from many-wave tails (A100 runs 4 waves); $\eta_{\mathrm{duty}}$ falls from pipe stalls. For transfer the model folds $\eta_{\mathrm{active}}$ into the residual but keeps $\eta_{\mathrm{duty}}$ separate. Arithmetically one suffices; diagnostically and for transfer, two are needed.

1.5 The memory side and L2 reuse — a bytes correction, not a bandwidth α

IssueIs L2 reuse a bandwidth α, and can it be quantified from pure parameters?partly — needs an experiment

It is a bytes-moved correction, the dual of the compute α: compute α derates the peak rate; L2 reuse derates the effective bytes charged. Cold profiling charges DRAM traffic warm execution never moves — cold/warm DRAM-read ratio for attention at 512 tokens is 73.5x (H100), 147x (H200), 246x (A100-80); collapses to ~1–2x at 2048 tokens. Modeled as a numerator (effective vs ideal bytes), never a sub-1 bandwidth factor.

The byte saving converts to almost no time: recoverable ceiling at $M{=}2048$ is 0.31/0.12/0.20 ms (under 0.65% of the ~50 ms pass; under 0.1% with pollution). This is a standalone paper ('Worth the Bytes?') — resource real, value bounded — whose causal gate failed, so it reports a descriptive bound.

Pure-parameter status — needs an experiment. The L2 correction is currently a MEASURED lookup table, not closed-form. It depends on runtime intervening traffic (a cliff at ~0.25–1x L2), not just shape. To make it pure-parameter: fit a survival cliff per architecture (sweep blob size vs pollution on the existing microbenchmark; survival = f(blob/free-L2, pollution/L2)) and combine with shape-derived ideal bytes.

1.6 The host overlap term — a bounded exposure, eager-mode α ≈ 1

IssueHow did we derive the overlap α?answered

A bounded overlap fraction from a two-resource argument; in eager mode it resolves to a measured, exposed host floor. The realised time lies between max (pure overlap) and sum (full serialisation). The host span splits into a shadowable dispatch part and an irreducible serial residual $S(N)$. With $T_{\mathrm{shadow}}=\max(0,T_{\mathrm{gpu}}-N_{\mathrm{kern}}T_{\mathrm{launch}})$, the exposed fraction is

(2) $$\alpha(N,T_{\mathrm{new}}) \;=\; \max\!\Big(0,\; 1 - \frac{T_{\mathrm{shadow}}}{S(N)}\Big),\qquad S(N) = a + b\,(N-1)$$

Neither a fitted scalar nor max-plus-residual: a curve, fully exposed for short GPU steps, fully hidden when the GPU supplies shadow. $S(N)$ is calibrated once per SKU on a disjoint synthetic grid (floor 2.4–4.4 ms, slope ≤0.02 ms/req). Eager-mode exposure is $\alpha\approx1$: Hopper $N{=}1$ decode measures 15.6–16.6 ms while GPU work is 5.0–6.7 ms, leaving a 9.5–11.2 ms exposed host residual.

A SEPARATE host term, outside the max in (1), not on the GEMM path. The bounded form is load-bearing: a fitted scalar α implied per-cell exposures from −12.7 to +9.9 (52/108 cells outside [0,1]), proving a scalar was absorbing GPU-model error; the bounded form forces those errors back into the GPU terms.

1.7 Is it online learning? No.

IssueAre we really doing online learning?answered

An overstatement — no online/incremental/gradient learning anywhere. Everything is computed or measured once, offline; the per-architecture clock-independent geometric constants ($\eta_{\mathrm{cluster}}$, $\eta_{\mathrm{active}}$, $\eta_{\mathrm{duty}}$, $\eta_{\mathrm{mem}}$) come from standalone microbenchmarks, not eval traces, and the clock factor $f_{\mathrm{clk}}$ from one per-deployment reading. The only learned quantity is the host floor $S(N)=a+b(N-1)$, a one-shot closed-form least-squares per SKU (no iteration, so no convergence-in-steps). An optional mode recovers one scalar per trace. The only `.fit()` models in the repo are baseline competitors.

The honest phrasing: a mechanism model with microbenchmark-calibrated per-architecture constants, one closed-form floor curve per SKU, optionally one scalar per deployment. The sellable property is 'needs no per-workload training' — not 'online learning'.

1.8 How accurate are we, and where do we fail?

IssueHow accurate are we vs ground truth, and where do we fail?answered

Ground truth = measured median step wall of a real vLLM engine. Two modes differ ~10x. FROZEN (no per-trace fit): arrival-driven decode 2.6–7.1%, but saturated all-at-once decode 18.6–30.9%. CALIBRATED (one scalar/trace): decode 0.8–3.7%, mixed 5.2–9.3%. Controlled grid: mean 4.34%, p95 9.33%, max 15.87% (200 cells).

Where it fails Error Why
First saturated-batch decode step83–97%A one-time host allocator growth event at N=64 that S(N) does not model.
Saturated all-at-once decode (frozen)7.7–30.9%Per-request output-processing host work the synthetic floor lacks.
Mixed admission-burst steps~29% (p95)KV-alloc / input-build host work during admission bursts.
L40S prefill+8 to +14%Clock cap: under real DVFS the 350 W cap throttles the L40S sustained clock to ~56% of boost (natural $f_{\mathrm{clk}}$ ≈ 0.56), which a boost-calibrated ceiling over-predicts.
Hopper N=1 pure decode−5.6 to −9.9%M-dependent decode-kernel selection one eta_mem cannot span.
Two caveats. (1) Any headline accuracy number must name the mode (frozen 2.6–7.1% vs calibrated 0.8–3.7% decode). (2) The controlled grid labels A100 as 'a100-40' while ShareGPT labels it 'a100-80' — verify before treating as one row.

1.9 The complete per-step model — every term, formula, and provenance

This is the whole model written out: every additive term, with its exact formula from the source of truth (src/mechanism/predictor.py) and a one-line provenance note — DERIVED (exact from geometry, no fit), MEASURED (a per-GPU constant from a standalone microbench/datasheet), or FITTED (a free parameter least-squares-fit to a microbench). Llama-3.1-8B constants: HID=4096, INTER=14336, HQ=32, HKV=8, DH=128, NL=32, VOCAB=128256, BP=2, QKV_OUT=6144, N_kern=12·NL+10=394. M = T_new = new tokens in the step; N = requests. The top equation is eq (1) above; below expands its terms.

$$T_{\mathrm{blocks}} = N_L\big(t_{\mathrm{proj}} + t_{\mathrm{attn}}\big) + t_{\mathrm{light}}\qquad(N_L=32;\ t_{\mathrm{proj}},\,t_{\mathrm{attn}}\ \text{below are PER LAYER}; \ t_{\mathrm{light}}\ \text{already includes its}\ N_L)$$

Term 1 — $t_{\mathrm{proj}}$: the projection GEMMs (per layer; roofline max per operator)

Each of the four weight matrices (qkv, o, gate_up, down) is the larger of a compute time and a memory-streaming time; the four-factor $\eta_c$ and this roofline are derived in §1.1–§1.2, so we only restate the one line here.

$$t_{\mathrm{proj}} = \sum_{op}\max\!\big(T_{\mathrm{compute}},\,T_{\mathrm{memory}}\big),\quad T_{\mathrm{compute}}=\frac{2\,M\,N_{op}K_{op}}{P_{\mathrm{boost}}\,\eta_c},\quad T_{\mathrm{memory}}=\frac{B_{op}}{\eta_{\mathrm{mem}}\,\mathrm{BW}_{\mathrm{peak}}}$$ $$B_{op}=\mathrm{BP}\,(M K_{op}+N_{op}K_{op}+M N_{op}),\qquad \eta_c=f_{\mathrm{clk}}\cdot\eta_{\mathrm{cluster}}\cdot\eta_{\mathrm{active}}\cdot\eta_{\mathrm{duty}}$$ $$(N_{op},K_{op}):\ \text{qkv}=(6144,4096),\ \text{o}=(4096,4096),\ \text{gate\_up}=(28672,4096),\ \text{down}=(4096,14336)$$

Provenance. FLOPs and bytes are DERIVED-exact from the shapes; $\eta_c$ is the four-factor model (§1.2 Table C); $\eta_{\mathrm{mem}}$ is a MEASURED per-GPU constant (M=64 gpu__dram_throughput: H100 0.755, H200 0.669, A100-80 0.75, L40S 0.884).

Term 2 — $t_{\mathrm{attn}}$: attention (roofline max of a causal-work compute branch and a KV-read memory branch)

Attention is the larger of a prefill-shaped compute branch (only requests with $s_{\mathrm{new}}>1$ contribute the causal work $\sigma$) and a KV-cache-read memory branch (all requests). Its efficiency is three factors: a measured ceiling, a softmax-amortisation saturation, and a causal-shape penalty.

$$t_{\mathrm{attn}}=\max\!\big(T_{\mathrm{compute}},\,T_{\mathrm{memory}}\big)$$ $$\sigma=\sum_{s_{\mathrm{new}}>1} s_{\mathrm{new}}\Big(s_{\mathrm{pref}}+\tfrac{s_{\mathrm{new}}+1}{2}\Big),\qquad T_{\mathrm{compute}}=\frac{4\,HQ\,DH\,\sigma}{\eta_{\mathrm{attn}}\,P_{\mathrm{boost}}}\ \ (T_{\mathrm{compute}}{=}0\ \text{if}\ \sigma{=}0,\ \text{a decode-only step})$$ $$\eta_{\mathrm{attn}}=\eta_{\mathrm{attn,ceil}}\cdot\frac{\sigma}{\sigma+c_{\mathrm{attn}}}\cdot\mathrm{shape},\quad \mathrm{shape}=\max\!\Big(0.2,\,1-p_{\mathrm{attn}}\frac{\sum_{s_{\mathrm{new}}>1} s_{\mathrm{new}}}{\sum_{s_{\mathrm{new}}>1}(s_{\mathrm{new}}+s_{\mathrm{pref}})}\Big)$$ $$\text{kv\_bytes}=BP\cdot 2\cdot HKV\cdot DH\sum_{\text{all reqs}}(s_{\mathrm{pref}}+s_{\mathrm{new}}),\qquad T_{\mathrm{memory}}=\frac{\text{kv\_bytes}}{\eta_{\mathrm{mem}}\,\mathrm{BW}_{\mathrm{peak}}}$$

Provenance. $\sigma$, the FLOPs, and kv_bytes are DERIVED-exact; $\eta_{\mathrm{attn,ceil}}$ is MEASURED (per-GPU attention microbench); $c_{\mathrm{attn}}$ and $p_{\mathrm{attn}}$ are FITTED (softmax-amortisation + causal-shape, from the attention microbench); $\eta_{\mathrm{mem}}$ is MEASURED (same constant as Term 1).

Term 3 — $t_{\mathrm{light}}$: light kernels + LM head

Light kernels are the memory-bound elementwise passes per token per layer (two rmsnorms, two residual adds, rope on q and k, the KV-cache write, act_and_mul); the LM head is the final logit projection, weight-read-bound.

$$t_{\mathrm{light}}=\text{light}+\text{lm\_head}$$ $$\text{light}=\frac{T_{\mathrm{new}}\cdot \text{per\_tok\_layer}\cdot N_L}{\eta_{\mathrm{mem}}\,\mathrm{BW}_{\mathrm{peak}}},\quad \text{per\_tok\_layer}=BP\big(4\,HID+6\,HID+2(HQ{+}HKV)DH+4\,HKV\,DH+3\,INTER\big)$$ $$\text{lm\_head}=\max\!\Big(\frac{2\,\text{rows}\,HID\,VOCAB}{\eta_c\,P_{\mathrm{boost}}},\ \frac{BP\,(HID\,VOCAB+\text{rows}(HID{+}VOCAB))}{\eta_{\mathrm{mem}}\,\mathrm{BW}_{\mathrm{peak}}}\Big)$$ $$\text{rows}=N\ \text{(decode / standard prefill: one logit row per request)}\quad\text{or}\quad T_{\mathrm{new}}\ \text{(speculative verify)}$$

Provenance. per_tok_layer bytes are DERIVED-exact and trace-validated (L40S T=16384 predicted 134 ms vs 134 ms measured); $\eta_{\mathrm{mem}}$ is MEASURED; the LM head is weight-read-bound, so rows move it <0.15%.

Term 4 — $T_{\mathrm{dispatch}}=N_{\mathrm{kern}}\,T_{\mathrm{launch}}$: the kernel-launch / dispatch floor

A step cannot finish faster than the GPU can launch its kernels back to back; this floor enters as an explicit max against $T_{\mathrm{blocks}}$ (eq 1).

$$T_{\mathrm{dispatch}}=N_{\mathrm{kern}}\,T_{\mathrm{launch}},\qquad N_{\mathrm{kern}}=12\,N_L+10=394$$

Provenance. $N_{\mathrm{kern}}$ is DERIVED-structural (kernels/layer × layers, +10); $T_{\mathrm{launch}}$ is MEASURED per-GPU (~7–8 µs).

Term 5 — $\alpha(N,T_{\mathrm{new}})\,S(N)$: the host-overlap leak

$S(N)$ is the scheduler / host step floor, growing with the batch; $\alpha$ is the exposed fraction. In eager mode (this paper's scope) $\alpha=1$ — the host runs serially on the critical path, fully exposed; an async / CUDA-graph engine would have $\alpha<1$, bounded by the GPU shadow.

$$\alpha(N,T_{\mathrm{new}})\,S(N),\qquad S(N)=s_{\mathrm{floor}}+s_{\mathrm{slope}}\cdot\max(0,\,N-1),\qquad \alpha=1\ \text{(eager)}$$

Provenance. $S(N)$ is MEASURED per-GPU ($s_{\mathrm{floor}}$: H100 2.37, H200 3.73, A100-80 2.81, L40S 21.0 ms [generate-proto, recal pending]; $s_{\mathrm{slope}}\le 0.02$ ms/req); $\alpha=1$ is MEASURED for eager (the real-trace host residual is exposed).

Term 6 — $T_{\mathrm{samp}}$: sampling time

The token-sampling cost, a per-GPU constant (~1.5 ms).

$$T_{\mathrm{samp}}\approx 1.5\ \text{ms (per-GPU constant)}$$

Provenance. MEASURED constant.

Master provenance table

Term Formula (named above) Provenance Key input
$t_{\mathrm{proj}}$ $\sum_{op}\max(T_{\mathrm{compute}},T_{\mathrm{memory}})$ DERIVED shapes; $\eta_c$ four-factor ($f_{\mathrm{clk}}$ MEASURED, geom DERIVED, $\eta_{\mathrm{duty}}$ FITTED $c$); $\eta_{\mathrm{mem}}$ MEASURED 4 GEMM shapes; four-factor $\eta_c$
$t_{\mathrm{attn}}$ $\max(T_{\mathrm{compute}},T_{\mathrm{memory}})$ DERIVED $\sigma$/bytes; MEASURED ceil; FITTED $c_{\mathrm{attn}},p_{\mathrm{attn}}$ $\sigma$, kv_bytes; attn microbench
$t_{\mathrm{light}}$ $\text{light}+\text{lm\_head}$ DERIVED bytes; MEASURED $\eta_{\mathrm{mem}}$ per_tok_layer; $HID{\times}VOCAB$ weight
$N_{\mathrm{kern}}T_{\mathrm{launch}}$ $394\cdot T_{\mathrm{launch}}$ DERIVED $N_{\mathrm{kern}}$; MEASURED $T_{\mathrm{launch}}$ 394 kernels; ~7–8 µs/launch
$\alpha\,S(N)$ $\alpha(s_{\mathrm{floor}}+s_{\mathrm{slope}}\max(0,N{-}1))$ MEASURED $S(N)$; MEASURED $\alpha{=}1$ (eager) $s_{\mathrm{floor}}$ 2.4–3.7 ms; $s_{\mathrm{slope}}\le0.02$
$T_{\mathrm{samp}}$ $\approx 1.5$ ms MEASURED constant per-GPU sampler trace
Honest summary. The per-step model is ~6 additive terms whose SHAPES (FLOPs, bytes, $\sigma$, grid geometry) are DERIVED exactly, while the efficiencies and floors ($\eta_{\mathrm{mem}}$, $\eta_{\mathrm{attn,ceil}}$, $f_{\mathrm{clk}}$, $S(N)$, $T_{\mathrm{launch}}$, $T_{\mathrm{samp}}$) are MEASURED per-GPU constants. Only $c_{\mathrm{attn}}$, $p_{\mathrm{attn}}$ (and $\eta_{\mathrm{duty}}$'s constant) are FITTED; $f_{\mathrm{clk}}$ is the one factor with no predictive model — it is measured per operating point.

2. Part two — the utility story, told honestly

The reframing wants, per paper, the predictor it uses and where ours plugs in, ideally as an abstract 'tested on N systems, improved metric by X%'. Here is the per-system reality from the raw ledger — weaker than 'we improve everything'; the honest claim is a coverage-and-cost story.

2.1 The per-system integration table

IssueThe per-paper predictor / insertion-point / result table.3 of 5 have numbers

Read the table left-to-right as the five questions: which system, the predictor it ships with, the code hook where ours is swapped in, a one-glance verdict, the head-to-head numbers (always ours vs theirs), and whether the evidence is a real trace or a simulator. The five marks:

we beat its native predictor on its own metric
statistical tie
we are worse
+ a capability it cannot produce at all
no native ground truth — no number possible
System Predictor it ships with Code hook we swap Verdict Head-to-head (ours vs theirs) Evidence: real or simulated?
Vidur Per-operator random forests RandomForestExecutionTimePredictor registry swap Worse decode 7.6 vs 5.6 · prefill 21 vs 0.9 · agg 8.4 vs 5.3 (MAPE %) Simulated — vs Vidur's own profiled ground truth (A100, Llama-3-8B)
DistServe Prefill / decode polynomial get_prefill_time / get_decode_time Tie decode 1.78 vs 2.27 (MAPE %) Real engine trace — OPT-13B; 44,851-step crosscheck, 0 mismatch
QLM Flat hardware-blind scalar (N×100/700) RWTEstimator.get_waiting_time Win — estimator only per-step 0.9–4.4 vs 111–123 (MAPE %, the estimate) Estimator accuracy (real steps). Live SLO ran (E3): 0.0 delta — gain doesn't reach the SLO
Splitwise-sim Interpolation over a profiled CSV get_iteration_duration + Capability-add — no head-to-head 0 of 1260 native rows in our model×GPU scope
AdaSpec Profiled table + linear regression MechanismDSD subclass No data — no head-to-head No native ground-truth pickle ships

2.2 Is Random Forest really worse? No — we are.

ChallengeIs RF really worse, and how much do we outperform it on cross-GPU transfer?transfer = unmeasured

The RF is not worse — we are, on Vidur's home turf: decode 7.6% vs 5.6%, prefill 21% vs 0.9%, agg 8.4% vs 5.3% MAPE. The RF trained on exactly this data; we read none. Our only advantage is cost and coverage: ~0.001 s + 0 rows vs 158 s + 44k rows (~10⁵× cheaper), plus cells the RF cannot produce at all.

Cross-GPU transfer — needs an experiment. The decisive question has NO measured answer. The advantage is asserted, never quantified. Experiment: collect Vidur ground truth on an unseen GPU (H100/H200, Llama-3-8B, ~1–2 GPU-hr/SKU), then score the A100-trained RF transferred there vs our fit-free predictor against the new ground truth — a 2×2 table (RF vs ours) × (home vs unseen). Hypothesis: RF degrades off-profile, ours holds ~5–8% decode.

2.3 What we changed in QLM

IssueWhat exactly did we change in QLM, and what did it do to its SLO metric?SLO ran (E3): 0.0 Δ

We replaced `RWTEstimator.get_waiting_time` — a flat scalar (requests × 100 tokens / 700 tok/s, no sequence or hardware axis) — with our per-SKU, sequence-aware `predict_step`. The estimate's per-step MAPE drops from 111–123% to 0.9–4.4% across four GPUs, and cross-SKU ranking goes from degenerate to Spearman 1.0.

QLM's SLO metric — ran in E3 (negative). The estimator win above is accuracy of the waiting-time ESTIMATE, not QLM's SLO. The live SLO loop ran on real H100 (E3): 0.0 attainment delta (both 0.75%, saturated), only +2 pp predicted-violation accuracy. The 111%→1% estimate gain does NOT move the live SLO — keep all QLM claims at 'estimate accuracy', not SLO.

2.4 The honest abstract claim

IssueDraft the honest 'tested on N systems, improved by X–Y%' sentence.drafted

The honest claim is coverage-and-cost, not improvement: 'We drop a fit-free predictor into the cost function of five published serving systems on their own code; with zero target-workload profiling it matches the profiled fit on its decode home turf (DistServe 1.8% vs 2.3%), replaces a hardware-blind scalar with a hardware-aware estimate (QLM 0.9–4.4% vs 111–123%), and supplies model×GPU cells two tools cannot model — at ~5 orders of magnitude lower calibration cost.'

Do NOT write. 'Improved metric by X–Y% on N systems' has N = 1, not 5: the only clean accuracy win is QLM (estimator, not SLO). Measured: outperform native on 1 (QLM estimator), tie 1 (DistServe), lose 1 (Vidur), capability-add 1 (Splitwise), no numbers 1 (AdaSpec). Do not imply we outperform Vidur's RF.

2.5 Where precision actually pays — the value-of-precision map (E4)

ChallengeWhere does precision actually improve serving, vs a strong baseline?answered (E4)

This is the question the whole project exists to answer: four mechanisms, each tested by a controlled ε-sweep against MEASURED steps and a STRONG baseline. The honest finding is a map — precision pays only where the step cost is decision-sensitive AND the loss is asymmetric; elsewhere a margin absorbs the error for free.

Mechanism Precision the lever? Improvement vs STRONG baseline
Spec-decode k-tuning withdrawn+4.6 pp WITHDRAWN — curves were predictor-generated, split hand-set (circular). Verified-refuted.
Chunked-prefill under a TBT cap weak~21% fewer prefill steps (lower TTFT) vs strong RF (steps ratio 1.21, measured); TTFT only (throughput ε-slope ≈ 0); single-stream pilot, live confirmation pending
Keep-warm routing (real HW)−29.6 ms/turn vs token-TTL (pooled; statistically tied with native LRU)
Decode batch-packing noε-flat (94 to 93); Spearman 0.07 — step flat in batch size
SLO routing no (vs strong)statistically indistinguishable from a calibration-free queue heuristic (precise slightly worse on W1); the 30pp is vs round-robin (strawman); driver = load-awareness, not precision
QLM live SLO (real HW, H100) no0.0 attainment delta (live); estimator-MAPE gain does not move SLO
The improvement, stated plainly (verified). The one robust precision improvement vs a strong baseline is chunked-prefill TTFT (~21% fewer prefill steps vs strong RF; single-stream pilot). Keep-warm is −29.6 ms vs token-TTL but tied with native LRU. Precision does NOT help decode-packing, routing, or live QLM SLO; the spec-k +4.6 pp was circular and is withdrawn. The contribution is the verified value-of-precision map.

Method: controlled ε-sweep + cross-predictor Spearman; ground truth = measured vLLM steps + one live H100 QLM run, never the predictor itself.

3. Literature anchors for the framing

The framing rests on two literature claims flagged for survey: prior work decides the bottleneck per kernel from FLOPs vs bytes, then multiplies peaks by an unexplained efficiency factor. A fresh survey is folded in below.

3.1 Per-kernel roofline / op-by-op bottleneck

LiteratureWhich papers use only per-kernel FLOPs vs bytes?surveyed

Foundational: the Roofline model (Williams, Waterman, Patterson, CACM 2009) — attainable rate $=\min(\text{peak compute}, \text{peak bandwidth}\times\text{intensity})$, no discount. The cleanest verified op-by-op LLM instance is LLM-Viewer (Yuan et al., arXiv:2402.16363, 2024), raw peak with no efficiency factor; Pope et al. (MLSys 2023, arXiv:2211.05102) reason the same way; LIFE (arXiv:2508.00904) spreads efficiency per-operator. Class framing: bottleneck from per-kernel FLOPs vs bytes; efficiencies are constants, lookups, or learned residuals.

3.2 The unexplained efficiency factor

LiteratureWhich papers multiply peaks by an unexplained α?surveyed

The clearest fitted-but-unexplained factor is GenZ (Bambhaniya et al., arXiv:2406.01698): per-op time $=\max(\text{compute}/(\text{FLOPS}\cdot\text{Eff}_C), \text{memory}/(\text{BW}\cdot\text{Eff}_{\mathrm{mem}}))$ with profiled values (A100 0.40, H100 0.55–0.75, MI300X 0.25), empirically profiled not derived; GenZ follows Vidur's profiling. The concept's origin is MFU from PaLM (Chowdhery et al., arXiv:2204.02311; PaLM-540B 46.2%, no closed form) and Megatron-LM (~52% of peak). FlashAttention (Dao et al., 2022) headlines an achieved-fraction; FlashAttention-3's reported 0.55 actually ranges 0.066–0.610 on H200. The sharpest foil is NeuSight (ASPLOS 2025, arXiv:2407.13853), which predicts utilisation with per-op MLPs instead of explaining it.

Bibliography to-do: add Roofline (Williams et al., CACM 2009) and an MFU citation (PaLM, 2204.02311), both missing; add NeuSight (2407.13853) as the ML-utilisation foil. LLMCompass derives utilisation from tile-mapping, not a single fitted α.

4. What the data cannot yet support — the missing experiments

These were the four missing experiments; E1, E3, E4 have now RUN (E4 = the §2.5 value-of-precision map), E2 still needs PACE staging. Each card records its outcome.

E1 · L2 reuse as a pure-parameter correction — RAN (partial)

Outcome: cliff fits cleanly (R² ≈ 0.99) but cl6 inflation does NOT reproduce, so not yet pure-param.

Fit the survival cliff per architecture on the existing microbenchmark; combine with shape-derived ideal bytes; validate against held-out cold/warm ratios (73.5–245.7× attention inflation).

E2 · Vidur cross-GPU transfer vs RF

Collect Vidur ground truth on an unseen GPU; score A100-trained RF transferred vs our fit-free predictor; output a 2×2 (RF vs ours) × (home vs unseen) table.

E3 · QLM live SLO loop — RAN live (negative)

Outcome (live H100): 0.0 SLO-attainment delta; estimator-MAPE gain does not move live SLO.

How it was run: real H100, backend=live, native vs ours on the same saturated Poisson workload, paired. Result: native 0.75% vs ours 0.75% attainment (0.0 delta), +2 pp predicted-violation. The 111%→1% estimate gain does not convert into a live SLO gain under saturation.

E4 · A genuine speedup demonstration — DONE (§2.5)

RESOLVED to §2.5, verified. Robust precision improvement: chunked-prefill ~21% fewer prefill steps (pilot). Keep-warm −29.6 ms vs token-TTL (tied LRU). Negatives: decode-packing, routing, QLM live SLO. spec-k +4.6 pp WITHDRAWN (circular).

5. Mental model versus the data — a scorecard

A one-screen summary: what the reframing assumed versus what the raw files show. Green = supported, amber = partly / needs rephrasing, red = needs a new experiment.

The mental-model claim The data verdict
Part 1: predict from minimal / pure-input measurement Predicts well, but needs per-arch microbenchmarks; not pure-input.
Three corrections Undercount: ~7 terms / 9+ factors.
Frequency droop makes GEMM slower Miss 989 = true; decline only on tight-cap parts.
L2 reuse = sub-1 bandwidth factor, pure-param✗ needs experiment Bytes correction, measured table — needs E1.
We do online learning No — offline calibration + one floor fit per SKU.
Part 2: improves inference time on existing systems✗ needs experiment Not shown; win on 1 (QLM estimator), tie 1, loss 1. E3/E4 done (negative); E2 still needed.
We outperform Vidur's Random Forest Worse on accuracy; edge is cost/coverage.
One-line conclusion. The predictor is real, cheap, accurate where calibrated. E4 (§2.5), verified: one robust precision improvement (chunked-prefill ~21% fewer prefill steps, pilot) + keep-warm (−29.6 ms vs token-TTL, tied with native LRU); negatives for decode-packing, routing, QLM live SLO; the spec-k +4.6 pp was circular and is withdrawn. The contribution is the verified value-of-precision map.
